Frames
| Description | Part No | Length | Weight | |
|---|---|---|---|---|
 | ThresholdDrain Stainless Steel Frame | 73048 | 1000 | 6.8 |
| ThresholdDrain Stainless Steel Frame | 73049 | 2000 | 13.3 | |
| ThresholdDrain Galvanised Steel Frame | 73050 | 1000 | 6.5 | |
| ThresholdDrain Galvanised Steel Frame | 73051 | 2000 | 12.8 |
[vcex_spacing]
Grates
Perforated
| Description | Part No | Length mm | Weight kg | Slot Size mm | Intake Area mm^2 |
|---|---|---|---|---|---|
| Stainless Steel | 95165 | 1000 | 1.8 | 6.5ø | 10,325 |
| Galvanised Steel | 94699 | 1000 | 1.8 | 6.5ø | 10,325 |
Slotted
| Description | Part No | Length mm | Weight kg | Slot Size mm | Intake Area mm^2 |
|---|---|---|---|---|---|
| Stainless Steel | 95545 | 1000 | 1.8 | 34.5 x 10 | 12,260 |
| Galvanised Steel | 95537 | 1000 | 1.8 | 34.5 x 10 | 12,260 |
Stainless 5 Star Heelsafe
Anti-Slip
Anti-Slip
| Description | Part No | Length mm | Weight kg | Slot Size mm | Intake Area mm^2 |
|---|---|---|---|---|---|
| Stainless Steel | 141761 | 1000 | 2.7 | 21 x 5 | 30,135 |

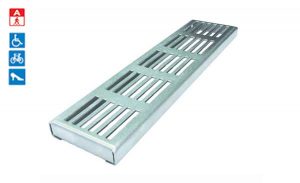

Longitudinal
| Description | Part No | Length mm | Weight kg | Slot Size mm | Intake Area mm^2 |
|---|---|---|---|---|---|
| Stainless Steel | 141475 | 1000 | 1.6 | 50 x 5 | 24,000 |
| Galvanised Steel | 141476 | 1000 | 1.6 | 50 x 5 | 24,000 |

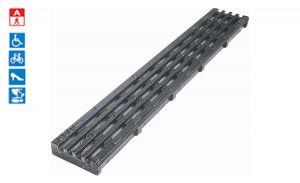

Iron Intercept Heelsafe Anti-Slip
| Description | Part No | Length mm | Weight kg | Slot Size mm | Intake Area mm^2 |
|---|---|---|---|---|---|
| Ductile Iron | 95553 | 500 | 3.3 | 38 x 8 | 11,615 |
